AUTOMATIC H202 PLASMA STERILIZER WITH PLC, MICROPROCESSOR PANEL

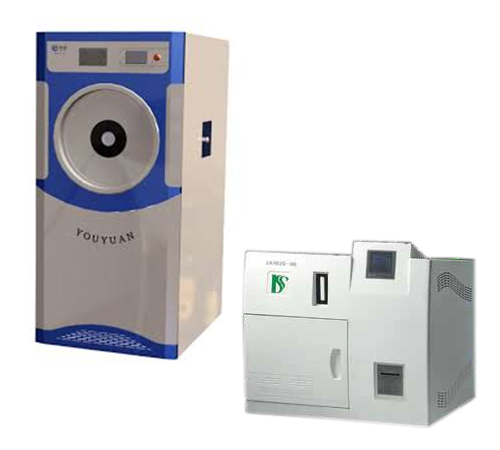

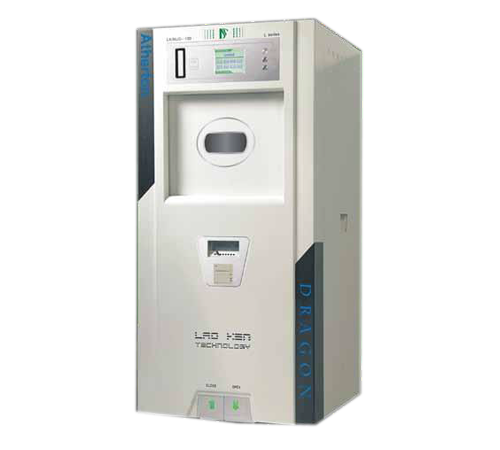

Hydrogen Peroxide Low Temperature Plasma Sterilizer
The LK series hydrogen peroxide low temperature plasma sterilizer is designed for rapid yet gentle sterilization of items sensitive to high temperature and moisture. It has a highly efficient cycle time of 30 minute at 55?C.
OOne of the most important requirements for plasma sterilizers is the ability to successfully process lumens. The unit will sterilize a 1mm stainless steel lumen up to 500mm and a 1mm polyethylene/Teflon steel lumen up to 2000mm within 30 minutes.
Installation requires nothing more than a dedicated power outlet. No costly plumbing, no special ventilation or monitors are required.
Low-temperature hydrogen peroxide gas plasma is non toxic and non carcinogenic to staff and patients. The by-products of the cycle are water and oxygen, eliminating the need for aeration or ventilation.
Features
Rectangular SS 316 Chamber with aluminums prop orate site designed for trouble-free diffusion
LCD Touch screen controls with one press start
15 minutes pre-heating (only needed for first cycle of the day)
Cassette sealing system and identification system to guarantee injection accuracy without any waste
32M memory card for cycle record retention
Simple maintenance
Fixable casters for easy moving
Two sliding shelve
Built in biological incubator
Foot switch door operation
Technical Specifications
| PBT/MI - 100L | PBT/MI - 50L | PBT/MI- 35L | |
|---|---|---|---|
| Cycle Time | Long Cycle: 55 minutes Standard Cycle: 31 minutes |
Long Cycle: 55 minutes Standard Cycle: 31 minutes |
Long Cycle: 55 minutes Standard Cycle: 31 minutes |
| Sterilization Chamber | Rectangle | Rectangle | Rectangle |
| Shape:Chamber Dimensions (WxHxD) | 450mm x 400mm x 690mm | 490mm x 220mm x 670mm | 250mm x 220mm x 660mm |
| Chamber Volume: | 124 Litres | 72 Litres | 36 Litres |
| Usable Volume: | 100 Litres | 50 Litres | 33 Litres |
| Dimensions, Weight | |||
| Dimensions (WxHxD): | 800mm x 1730mm x 1002mm | 800mm x 1490mm x 940mm | 700mm x 960mm x 680mm |
| Net Weight: | 490kg | 400kg | 135kg |
| Installation Dimensions | |||
| Minimum distance form wall: | 100mm | 100mm | 100mm |
| Minimum service access to front: | 1000mm | 1000mm | 1000mm |
| Venting requirements: | Not required | Not required | Not required |
| Controller | Fully automated microprocessor controller. | ||
| Display & Printer | 6.5inch, TFT true colour, touch screen. Built in heat sensitive Micro printer. | 3.5inch, TFT true colour, touch screen. Built in heat sensitive Micro printer. | |
| Flash Memory Card | 32MB memory card record and data storage for each cycle | ||
| Hydrogen peroxide cassette | Hydrogen peroxide concentration: 58% Shelf Life: 1 year One cassette has the capacity for 12 standard or 6 long cycles |
||
| Sterilization Level | Sterilization efficacy: SAL 106 | ||
| Door | Automatic vertical sliding door controlled by hand switch, foot switch and the touch screen. | Hinged door | |
| Connections | AElectricity only. 415v, 50 Hz, 16A, 3phase | Electricity only 240v, 50 Hz, | |
| Operational Environment | Ambient temperature 5 - 40 °C Relative humidity 30 - 95%RH | ||
| Accessories and Consumables | All the necessary consumables for sterilization - cassettes, containers, packing paper, packing reels, chemical and biological indicators are available through Atherton. | ||
| Standards | ISO9001:2008 | ||
