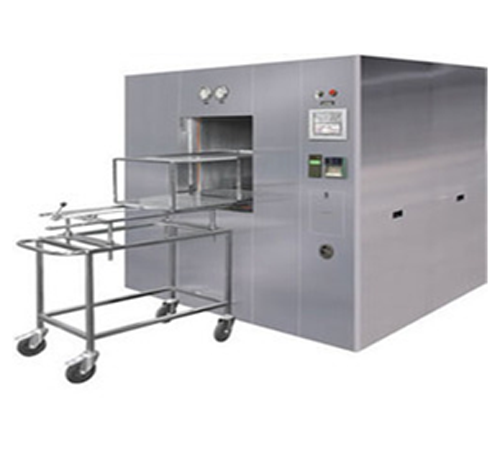

Dryheatsterlizer-GMPModel (Chamber) Material Of Construction
Inside body 2 mm thk SS 316 quality. & outside Body 2 mm thk. SS 304 Quality.
Body
Fabricated in double walled constructionS. S.304 quality framework from inside & outside the unitmounted onrigid steelframework, the gap in between the two walls is filled with thick fiber glass wool for insulations.
Then it is also provided with air inlet-outlet, air filter, Insulated door inter locking with limit switch door, carriage trolley, floor trolley etc.
Unitis provided with a double door at the front & back side (For sterilizer & Non-sterilizer area.)
The door lips will have silicon gasket prevent the leakage.
Intel Ahu. With Suction Blower Assembly
Blower interior fabricated from S.S. 304 quality material dynamically balanced housed in S.S. 304 quality Scroll
It is driven by 0.5HP/2800RPM/415 V/50Hz/AC Supply Non-flame proof Motor.
The inlet air is passed through 5 micron, 10 micron filters & cooling coil.
DRY HEAT HORIZONTAL RECTANGULARSTERILIZER WITH BLOWER PUMP, PLC, MICROPROCESSOR PANEL
Heaterassmbly Electricheating
Air entering the drier is heated by tubular electric fin heaters of 1.5 Kw each.
Total heating load will be14 KW. The total heating load will be divided into four heating zones.
Temperature of inlethotairis controlled by Digital temperature controller cum indicator.
Cooling Coilassmbly
Fabricated from SS 304 quality material.
Air entering the drier is cooling by cooling coil.
Cooling pressure3.5kg./cm
Cooling Temperature of inlethotairis controlled by Digital temperature controller cum indicator
Inlet Blower Assembly
Blower interior fabricated from SS 304 quality material dynamic all balanced house din S.S. 304 quality Scroll.
Improved impeller drive system with high temperature bearings and motor mounting arrangement for lower vibration and sound levels.
It is driven by 1.5 HP/1400 RPM/415 V/50 Hz/AC Supply Non-flame proofs Motor.
Air circulation inside the sterilizer chamber will be by this blower assembly.
Handling Accessories
Fabricated Form S.S.304 quality these cassettes are designed to ensure maximum penetration of the sterilizing medium.
| Chamber | Sr. No. | Width | Height | Depth | Volume(m2/ft) | Capacity(liter) |
|---|---|---|---|---|---|
| 1 | 450mm | 450mm | 900mm | 0.18/6.75 | 180 |
| 2 | 600mm | 600mm | 1200mm | 0.432/16 | 432 |
| 3 | 600mm | 600mm | 1500mm | 0.54/20 | 540 |
| 4 | 900mm | 600mm | 1500mm | 0.81/20 | 810 |
